Ref: B04-4

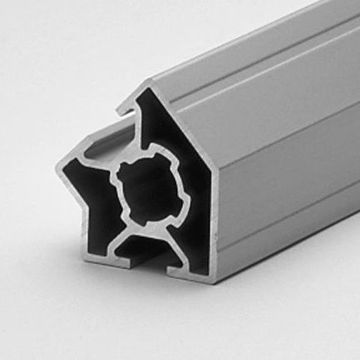

Angle extrusion 45deg
Technical Description
Technical Data
Ix (cm4)
3.14
Iy (cm4)
2.91
Wx(cm3)
1.44
Wy(cm3)
1.45
Cross section area (cm2)
3.13
Weight (kg/m)
0.9
Description
Angle extrusion 45deg
The B04-4 angle extrusion 45 degree is ideal for creating stands, tables, safety guards or display cabinets with sloping surfaces. This extrusion will ensure elegant shapes are created.
Matching Accessories
Interconnects B20-90
Threaded plates B32-60
light extrusion nut B32-65
Cover B40-45
Thread Insert B33-21
