Ref: A01 1

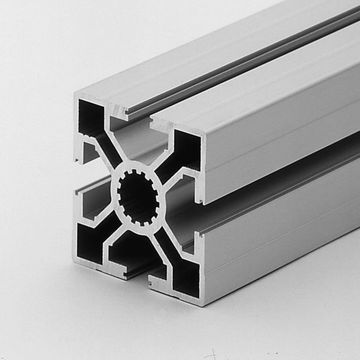

Base extrusion 50×50
Technical Description
Technical Data
Ix, y (cm4)
20.88
Wx, y (cm3)
8.35
Cross section area (cm2)
8.55
Weight (kg/m)
2.3
Description
Base Extrusion
Suitable for most design tasks thanks to their excellent weight and strength properties. Includes holes for direct threading and small guide slots to cover the openings in the extrusions with aluminum strips.
