Ref: B01 6

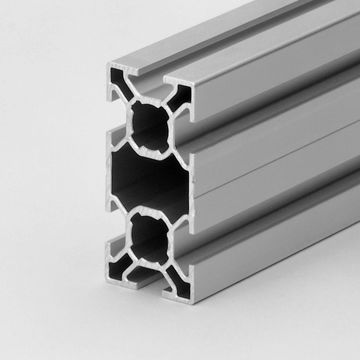

Base extrusion 30×60
Technical Description
Technical Data
Ix (cm4)
20.52
Iy (cm4)
5.2
Wx(cm3)
6.84
Wy(cm3)
3.47
Cross section area (cm2)
5.47
Weight (kg/m)
1.5
Description
Base extrusion 30×60
It is very suitable as a traverse or for the construction of light conveyor belts. A universal profile for many purposes.
Matching Accessories
Interconnects B20-90
Threaded plates B32-60
light extrusion nut B32-65
Cover B40-20
Thread Insert B33-21
Related Accessories
Channel reducing strips
Ref: B39 50
Ref: B39 50
M6x20 T Bolt
Ref: B35 20
Ref: B35 20
Castors no lock
Ref: B48 54
Ref: B48 54
Castors no lock
Ref: B48 50
Ref: B48 50
Attachment Brackets
Ref: B30 56
Ref: B30 56
Castors with lock
Ref: B49 100
Ref: B49 100
Threaded plate M6
Ref: B32 60
Ref: B32 60
Threaded inserts
Ref: B33 06
Ref: B33 06
