Ref: C01 9

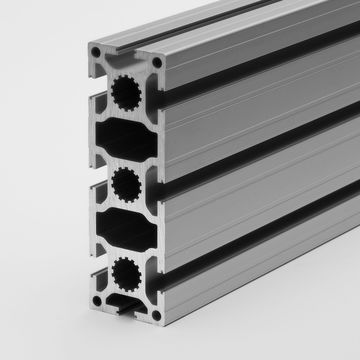

Beam extrusion 40×120
Technical Description
Technical Data
Ix (cm4)
258.52
Iy (cm4)
33.43
Wx(cm3)
43.09
Wy(cm3)
16.72
Cross section area (cm2)
19.63
Weight (kg/m)
5.3
Description
Beam extrusion 40×120
The C01-9 40×120 beam extrusion has the same properties as the MA1-3 but with slightly lower load bearing capability.
Matching Accessories
Connector C20-90
Threaded plates AC32-60
Light extrusion nut C32-65
End cap C40-10
Threaded insert base A33-20
