Ref: MA1 9

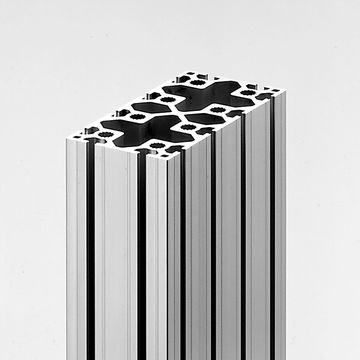

Heavy duty extrusion 100×200
Technical Description
Technical Data
Ix (cm4)
2435.3
Iy (cm4)
705.6
Wx(cm3)
243.53
Wy(cm3)
141.12
Cross section area (cm2)
60.79
Weight (kg/m)
16.41
Description
Heavy duty extrusion 100×200
Ideal for building gantries in which the supports are spaced well apart or for any application where very heavy loads have to be borne with minimal bending.
Matching Accessories
Threaded plate AC32-60
light extrusion nut A32-65
Threaded insert A33-20
