Ref: A19 2

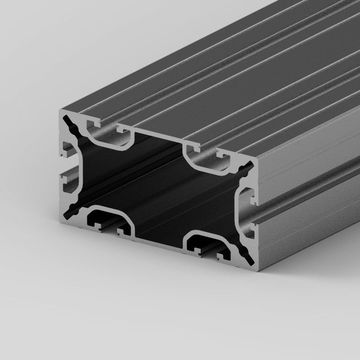

Counterweight extrusion 50×100
Technical Description
Technical Data
Ix (cm4)
41.82
Iy (cm4)
16.43
Wx(cm3)
8.36
Wy(cm3)
6.57
Cross section area (cm2)
12.33
Weight (kg/m)
3.33
Description
Counterweight Extrusion 50×100
Counterweights for vertical sliding doors can be guided inside this profile. It is a combination profile of the base 40 + 50. The grooves are based on the geometry of the base 40, so the accessories of the base 40 can be used optimally. This profile can be connected to the PVS-Direkt.
Related Accessories
Light extrusion Nut M6
Ref: A32 65
Ref: A32 65
End caps
Ref: B40 60
Ref: B40 60
Ball catches
Ref: A66 50
Ref: A66 50
Threaded plate M6
Ref: AC32 60
Ref: AC32 60
Handles
Ref: D65 01
Ref: D65 01
Brackets
Ref: A30 12
Ref: A30 12
Threaded inserts
Ref: B33 08
Ref: B33 08
Castors no lock
Ref: B48 75
Ref: B48 75
