Ref: B05-1

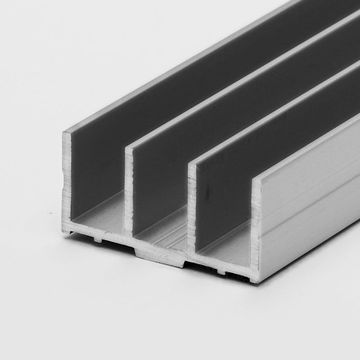

Triple channel extrusion 30×15
Technical Description
Technical Data
Cross section area (cm2)
1.18
Weight (kg/m)
0.32
Description
Triple channel extrusion 30×15
A mounting profile with the best suitability for glazing and sliding doors – in other words, wherever aesthetics and functionality are required. The sliding profile can be attached to any construction profile of the base 30mm. The plastic profiles B39–55 and B39–35 serve to improve the sliding properties or can be used as a groove reducing or cover profile.
