Ref: A03 8

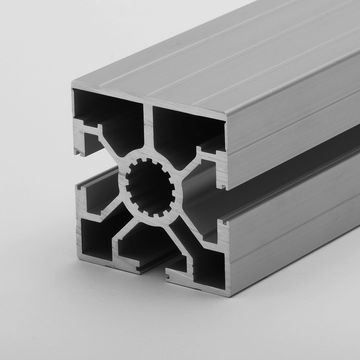

Face panel extrusion 50×50
Technical Description
Technical Data
Ix (cm4)
20.4
Iy (cm4)
19.72
Wx(cm3)
8.07
Wy(cm3)
7.89
Cross section area (cm2)
8.28
Weight (kg/m)
2.2
Description
Face Panel Extrusion 50×50
The A03-8 face panel extrusion 50×50 from Kanya UK has one face closed to give the ability for an insert panel in the open slot, if necessary put in a sealing strip, insert panels and mount the frame. The 8mm panels fit perfectly in the rip off slot.
Related Accessories
Hinges
Ref: A60 21
Ref: A60 21
Channel reducing strips
Ref: A39 32
Ref: A39 32
Hinges
Ref: AC6 21
Ref: AC6 21
Threaded plate M4
Ref: AC32 40
Ref: AC32 40
Light extrusion Nut M6
Ref: A32 65
Ref: A32 65
Light extrusion Nut M8
Ref: A32 85
Ref: A32 85
Threaded inserts
Ref: A33-20
Ref: A33-20
Castors no lock
Ref: A48 125
Ref: A48 125
